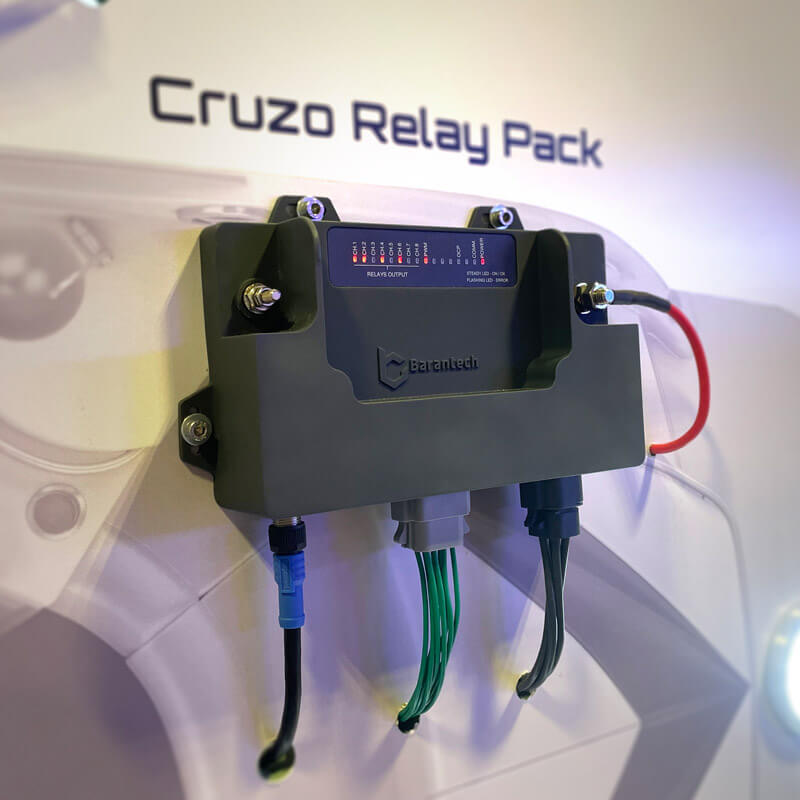

Cruzo Smart Relay

Connect all your electronic equipment onboard

Our Cruzo Smart Relay acts as a bridge, allowing the panels to control various electronic equipment onboard, such as lights, bilge pumps, blowers, and windlasses. This enhances the overall functionality and convenience offered by your boat.

Key Characteristics

CSR8/1: (Cruzo Smart Relay 8 CHANNEL VER.1)
NMEA 2000 Compatibility: Ensures easy integration with existing marine networks.
Four 10A Relays & Four 20A Relays: Versatile power management for different loads.
NMEA 2000 Interface: opto isolated.
Battery Connection via M8 Screw: Secure and robust connection for continuous power.
Coninuous Current Management: Monitors and manages current flow across all relays.
Status Indicators: LEDs provide clear visual feedback for system status, along with dedicated communication and power LEDs. Status indicating LEDs.
IP67: Built to withstand harsh marine environments.

Electrical Data

Supply Voltage

7- 30VDC

Power Consumption

max 600 mA

Load Equivalence Number (LEN)

1 (the CSR8 cannot be powered from NMEA BUS)

Current Consumption

20A max

Reverse Polarity Protection

YES

Channel Current Measurement Accuracy

+/- 0.5 A

Channel Current Measurement Resolution

10 mA

Minimum Current Measurement

150 mA

Programmable Trip Level Resolution

Input Signals Voltage

LOW: 0-1.5V
High: 3.3-12.5V

Mechanical Data

Size (Including Mounting Flanges)

229×146.4×48.5 mm / 9.02×5.76×1.91 in
Including Flanges for Mounting

Weight

960 ± 100 gr

Power Studs

Type

DC(+)

DC(-)

Size

Max. Tightening Torque

9 Nm

2.2Nm

Environmental Data
